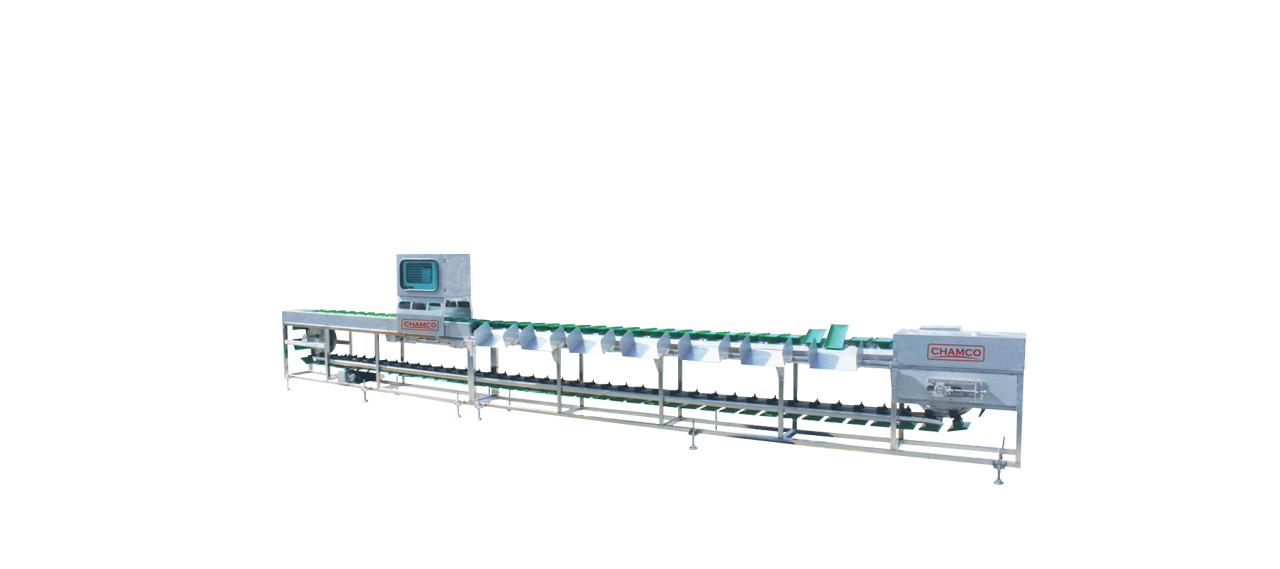

    CHFGW-7 Fish Grading Machine [Weight checking type]

본문

Product Features
  • Just place the fish on a plate and the weight is automatically checked and discharged to the set point.
  • The electronic controller allows free weight setting between grades, allows for detailed sorting by setting in increments of at least 10g, and allows for 3 to 7 level sorting depending on the order.
  • An electronic weight check method using a load cell and a solenoid waterproof type were applied.
  • The injection molded plate can be easily replaced with one touch.
  • The margin of error (±3g) was reduced by applying a lower shower nozzle and cleaning brush to remove by-products such as fish scales.
  • Dashboard
  • Plate part
  • Plate Washing brush
  • Plate detachable part
POWER DIMENSION : L X W X mm/KG CAPACITY TARGET FISH
1PH×220V×0.75KW 7단 : 8103×854×787 MAX 180 FISH/MIN Medium and small fish such as croaker, mackerel, flounder, etc.
6단 : 7570×854×787
5단 : 7037×854×787
