CHHDVS- 1
Automatic Deheading, Gutting and Cutting Machine
본문
Product Features
- If you load it into a hopper, it will be released to the rear after the deheading,
gutting, and cutting.
- Since the intestines are removed twice, the intestine removal rate is 98% or higher..
- There are small fish for sardines, saury, small mackerel (less than 300g) and
medium fish such as mackerel and Japanish Spanish mackerel.
- Three different cut specifications can be changed to one touch.
-

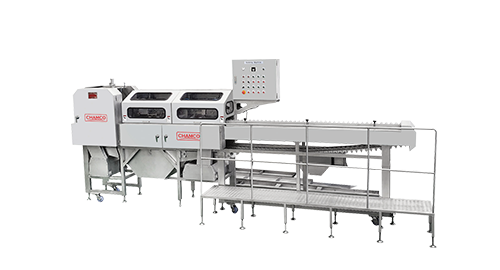

Product loading view
-
Mackerel with viscera removed by suction
제품사양
MACHINE
POWER
DIMENSION : L×W×H ㎜,KG
CAPACITY
TARGET
BODY
VACCUM
BODY
VACCUM
Small Fish
3PX380VX7.5KW
3PX380VX15KW
5280X810X1400
2530X1312X2689
200~250fishes/min
Saury, Mackerel
Medium size fish
3PX380VX2.1KW
3PX380VX15KW
5200X1400X2200
1320X1320X2260
[이 게시물은 최고관리자님에 의해 2025-03-13 10:45:28 수산물 가공기계에서 이동 됨]
