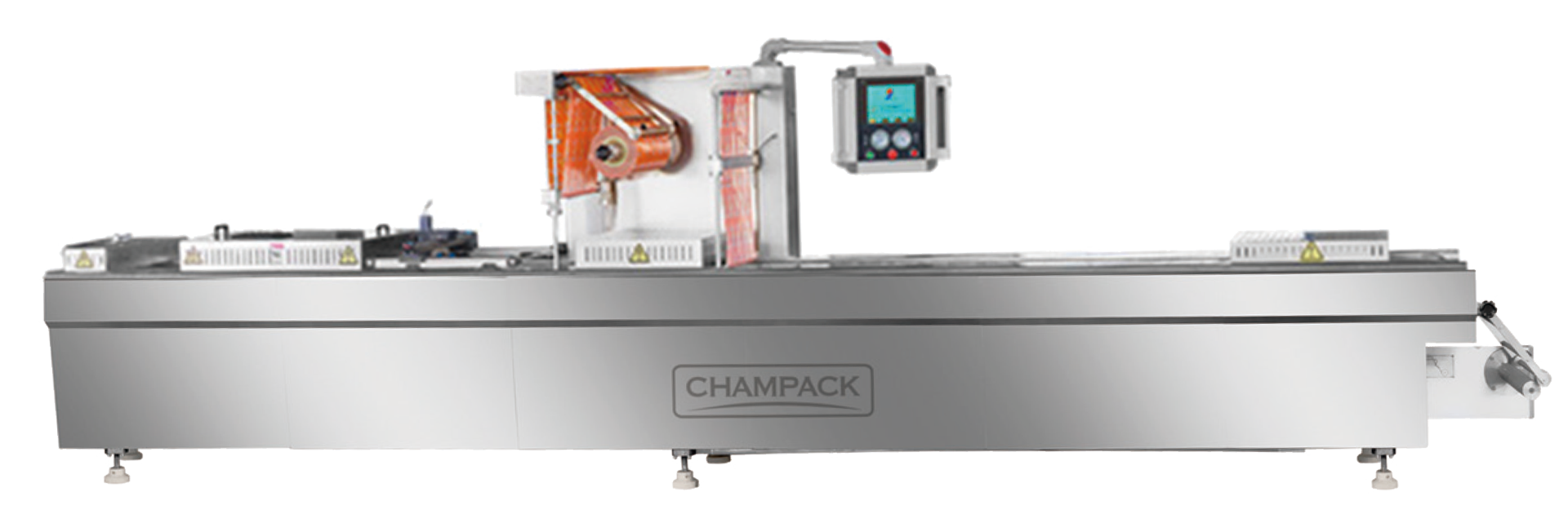

C-TV 320/420/520/580
Automatic Thermoforming Vacuum Packging Machine
본문
-
-
RA0063F
-
RA100F
-
RA00240A
-
-
Inkjet print
-
Thermal transfer print
-
Recycling system
Product Specifications
MODEL
Width of the upper film
Width of the lower film
Vacuum
CAPACITY
POWER
DIMENSION : L×W×H ㎜
WEIGHT
C-TV320
293~294mm
322mm
<200Pa
6~8 cycle/min
3P×380V×8KW
4300×780×1760mm
950kg
C-TV420
393~394mm
422mm
7~9 cycle/min
3P×380V×12KW
6800×950×1860mm
2400kg
C-TV520
493~494mm
522mm
8~10 cycle/min
3P×380V×12KW
6800×950×1860mm
2600kg
C-TV580
553~554mm
582mm
8~10 cycle/min
3P×380V×18KW
7200×1110×1860mm
2800kg
Part
Brand
PLC, Siemens S7-200 Smart
SIEMENS(GERMANY)
10inch Siemens Smart Line Touch Screen
SIEMENS(GERMANY)
Siemens Servo Driving Ststem 1.5kw
SIEMENS(GERMANY)
Schneider Circuit, Ac Contactor
SCHENIDER(FRANCE)
Vacuum Pump (BUSCH, RA0202D)
BOSCH(GERMANY)
Chains
GEGINA(ITALY)
Pneumatic Element
SMC(JAPAN)
Air Cylinder
SMC(JAPAN)
Button Switch
IDEC(JAPAN)
Power
SIEMENS(GERMANY)
Computer Temperaure Control System
AZBIL(JAPAN)
Siemens Motor Starter
SIEMENS(GERMANY)
Color Mark Sensor
SICK(GERMANY)
Product Video
Catalogue
- 다음Vacuum Packaging Machine 24.07.24
댓글목록
등록된 댓글이 없습니다.
회원로그인
회원가입
-

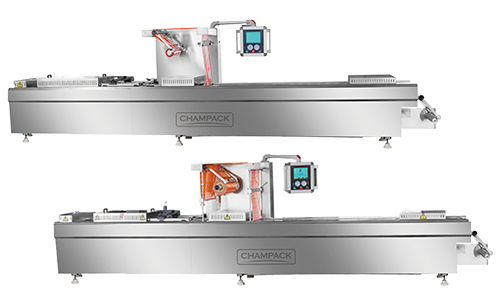

C-TV 320/420/520/580
Automatic Thermoforming Vacuum Packging Machine
-
-
RA0063F
-
RA100F
-
RA00240A
-
-
Inkjet print
-
Thermal transfer print
-
Recycling system
- 다음Vacuum Packaging Machine 24.07.24
본문
Product Specifications
| MODEL | Width of the upper film | Width of the lower film | Vacuum | CAPACITY | POWER | DIMENSION : L×W×H ㎜ | WEIGHT |
|---|---|---|---|---|---|---|---|
| C-TV320 | 293~294mm | 322mm | <200Pa | 6~8 cycle/min | 3P×380V×8KW | 4300×780×1760mm | 950kg |
| C-TV420 | 393~394mm | 422mm | 7~9 cycle/min | 3P×380V×12KW | 6800×950×1860mm | 2400kg | |
| C-TV520 | 493~494mm | 522mm | 8~10 cycle/min | 3P×380V×12KW | 6800×950×1860mm | 2600kg | |
| C-TV580 | 553~554mm | 582mm | 8~10 cycle/min | 3P×380V×18KW | 7200×1110×1860mm | 2800kg |
| Part | Brand |
|---|---|
| PLC, Siemens S7-200 Smart | SIEMENS(GERMANY) |
| 10inch Siemens Smart Line Touch Screen | SIEMENS(GERMANY) |
| Siemens Servo Driving Ststem 1.5kw | SIEMENS(GERMANY) |
| Schneider Circuit, Ac Contactor | SCHENIDER(FRANCE) |
| Vacuum Pump (BUSCH, RA0202D) | BOSCH(GERMANY) |
| Chains | GEGINA(ITALY) |
| Pneumatic Element | SMC(JAPAN) |
| Air Cylinder | SMC(JAPAN) |
| Button Switch | IDEC(JAPAN) |
| Power | SIEMENS(GERMANY) |
| Computer Temperaure Control System | AZBIL(JAPAN) |
| Siemens Motor Starter | SIEMENS(GERMANY) |
| Color Mark Sensor | SICK(GERMANY) |
Product Video
Catalogue
